openikev2::Payload_ID Class Reference

This class represents an Identification Payload. More...

#include <payload_id.h>

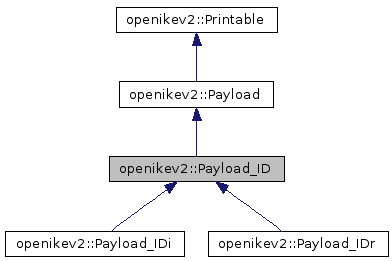

Inheritance diagram for openikev2::Payload_ID:

[legend]List of all members.

Public Member Functions
	Payload_ID (const Payload_ID &other)
	Creates a new Payload_ID cloning another one.
virtual void	getBinaryRepresentation (ByteBuffer &byte_buffer) const
	Appends the binary representation of the Payload at the end of the buffer, without the fixed header.
virtual string	toStringTab (uint8_t tabs) const
	Construct a textual representation of the object, preceded of a num of tabs of size TAB_SIZE.
virtual auto_ptr< Payload >	clone () const
	Cets a clone of this payload.
Public Attributes
auto_ptr< ID >	id
	Identification information.
Protected Member Functions
	Payload_ID (auto_ptr< ID > id)
	Creates a new Payload_ID.
	Payload_ID (ByteBuffer &byte_buffer)
	Creates a new Payload_ID based on its binary representation.

---

Detailed Description

This class represents an Identification Payload.

Author:

Alejandro Perez Mendez, Pedro J. Fernandez Ruiz <alejandro_perez@dif.um.es, pedroj.fernandez@dif.um.es>

---

Constructor & Destructor Documentation

openikev2::Payload_ID::Payload_ID

(

auto_ptr< ID >

id

)

[protected]

Creates a new Payload_ID.

Parameters:

id

ID

openikev2::Payload_ID::Payload_ID

(

ByteBuffer &

byte_buffer

)

[protected]

Creates a new Payload_ID based on its binary representation.

Parameters:

byte_buffer

Buffer with its read pointer at the "payload length" field

openikev2::Payload_ID::Payload_ID

(

const Payload_ID &

other

)

Creates a new Payload_ID cloning another one.

Parameters:

other

Other Payload_ID to be cloned

---

Member Function Documentation

void openikev2::Payload_ID::getBinaryRepresentation

(

ByteBuffer &

byte_buffer

)

const [virtual]

Appends the binary representation of the Payload at the end of the buffer, without the fixed header.

Parameters:

byte_buffer

Byte buffer where append the binary representation

Implements openikev2::Payload.

string openikev2::Payload_ID::toStringTab

(

uint8_t

tabs

)

const [virtual]

Construct a textual representation of the object, preceded of a num of tabs of size TAB_SIZE.

Parameters:

tabs

Num of tabs preceding the textual representation.

Returns:

Textual tabulated represetation of the object.

Implements openikev2::Payload.

auto_ptr< Payload > openikev2::Payload_ID::clone

(

)

const [virtual]

Cets a clone of this payload.

Returns:

Clone of the payload.

Implements openikev2::Payload.

---
